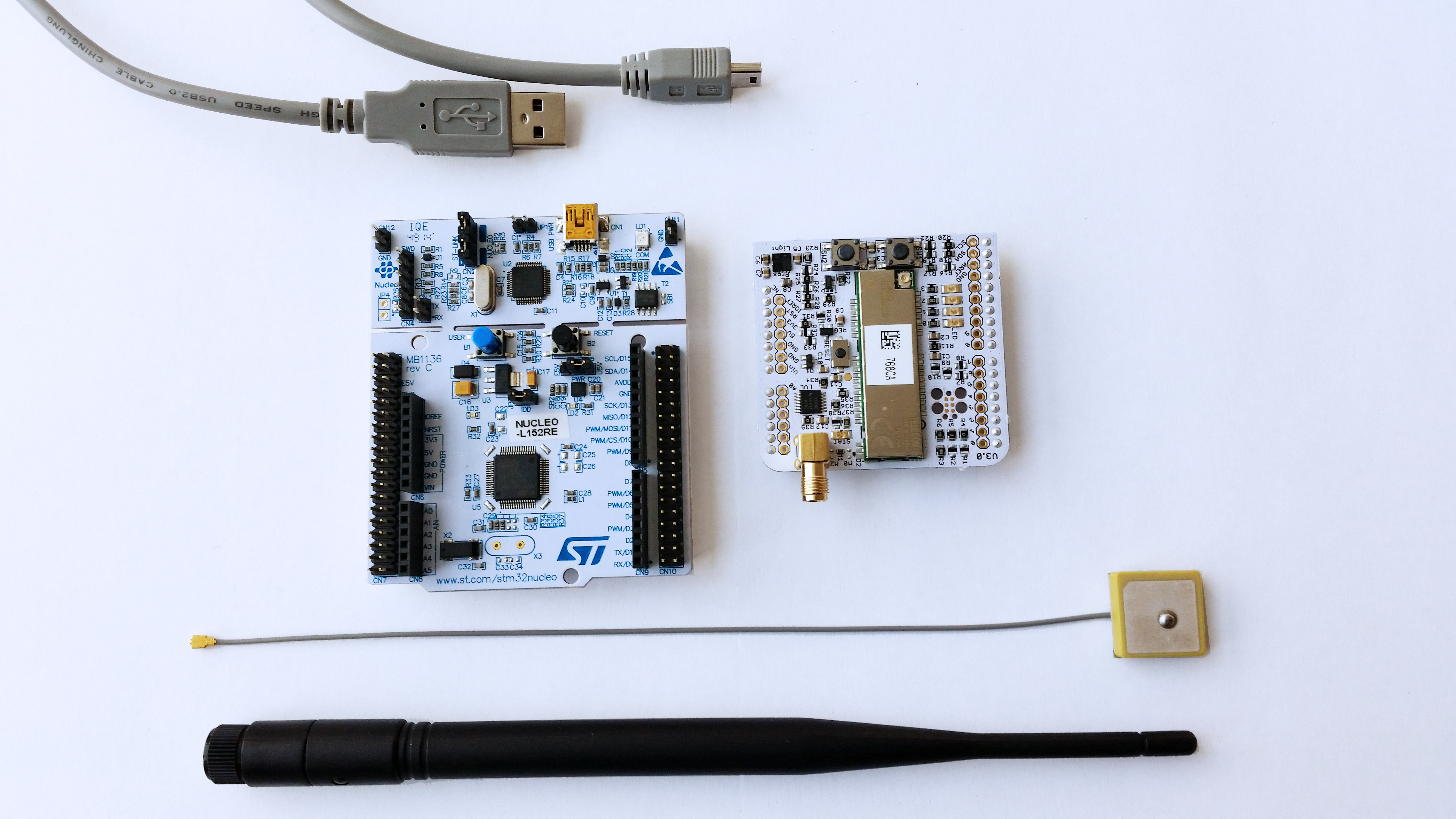

Everything you need to get started!

  • ARMmbed driven Nucleo-L152RE baseboard
  • QW GPS Shield with the following features:

    • -   TD1204 modem
    • -   2 user-programmable buttons + 1 reset button
    • -   4 user-programmable bright blue LEDs + 1 bootloader LED attached to the modem
    • -   Proximity sensor (VCNL4010)
    • -   Ambient light sensor (VCNL4010)
    • -   Analog temperature sensor (MCP9700)
    • -   GPS receiver (UBX G7020 built into TD1204)
    • -   3 axis accelerometer (STM LIS3DH built into TD1204)
    • -   TC2030 debugging header to upload (custom) firmware to the modem. Firmware updates are also possible through a serial bootloader.
    • -   Levelshifter that allows the hardware to be used on multiple platforms (mbed 3V3, arduino 5V)
    • -   Protection diode for external power input + onboard voltage regulator for standalone operation
    • -   Schematics available: download here
  • Active GPS Antenna
  • Omnidirectional 868MHz antenna with SMA connector
  • PAC code for registration on the Sigfox backend, Sigfox subscription included
  • USB cable
